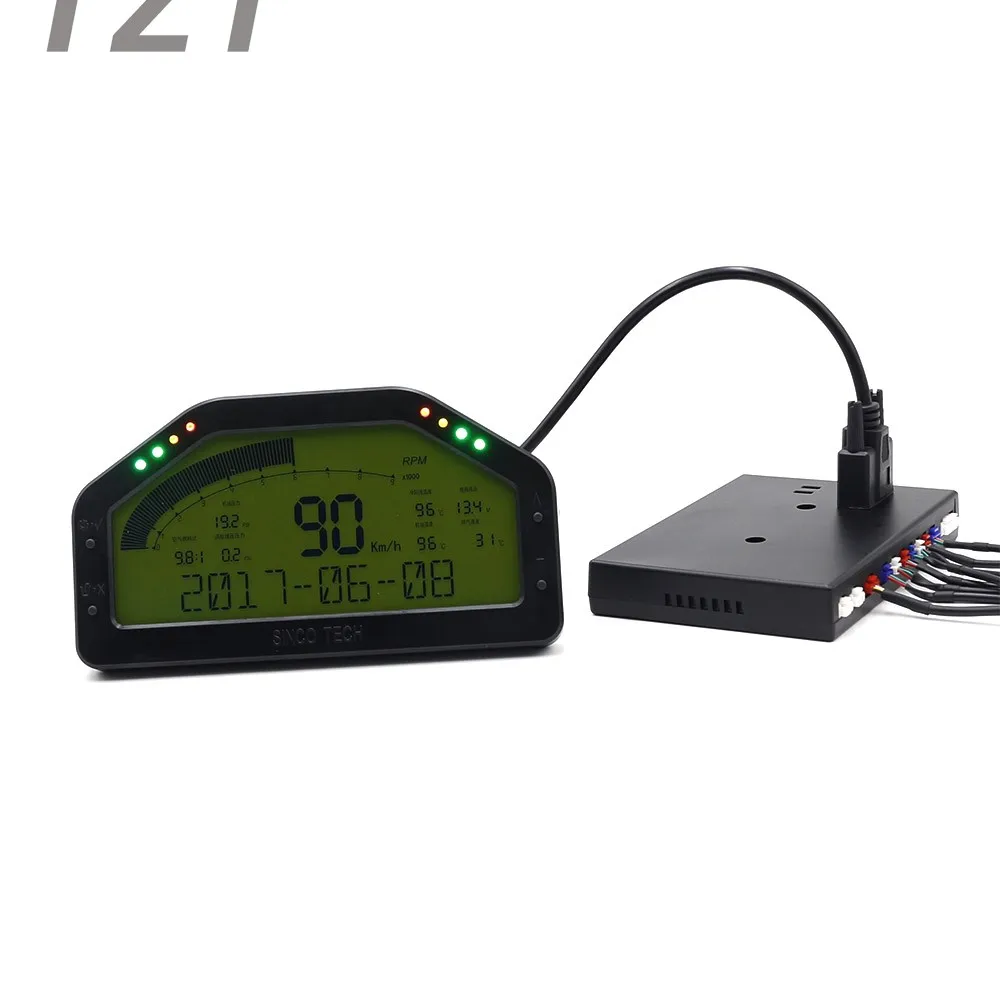

SINCOTECH DO908 Car Race Dash Bluetooth Full Sensor Dashboard LCD Gauge

SINCOTECH DO908 Car Race Dash Bluetooth Full Sensor Dashboard LCD Rally Gauge

Parameters:
- Speed: 0-255Km/h
- Engine Rotate Speed: 0~9000rpm
- OP1 Oil pressure(OIL P.): 0~150PSI or 0~10BAR
- OP2(BOOST.P) -15~45PS or -1~3BAR
- OP3*Air oil ratio: 20~10：1
- OP4 Oil Temperature: (OIL T.)0~150℃ Or 0~300℉
- OP5(WATER T.): 0~150℃ or 0~300℉
- OP6 Exit temperature(EXT T.): 0~1,300℃ or 0~2400℉
- Voltage: 10~16V
- Clock: 24H Clock
- Corresponding speed pulse: 2/4/6/8 pulse
- Pulse: 1,274~16,562/km (equals to pulse2~26)
- Number of Corresponding Cylinders: 1/2/3/4/5/6/8(in circle)
- Package Size: 26*25*9CM

A: LED Indicator ; with 4LEDs in both sides,the color are Green/Green/Yellow/Red, the LEDs will lighting acoording the Rotate speed increasing
B:Upper option button; could choose parametter and goes to up/down to set the parameter
C:Down option button:could choose parametter and goes to up/down to set the parameter
D:Menu button: used for get menu page and confirmation of the parameter
E;Exit key: used for exit menu and cancel the parameter adjustment
F:Data port: Use for connect to the sensor data connet port
G: Installation position:used to install the device to the car by screws


Package Included:

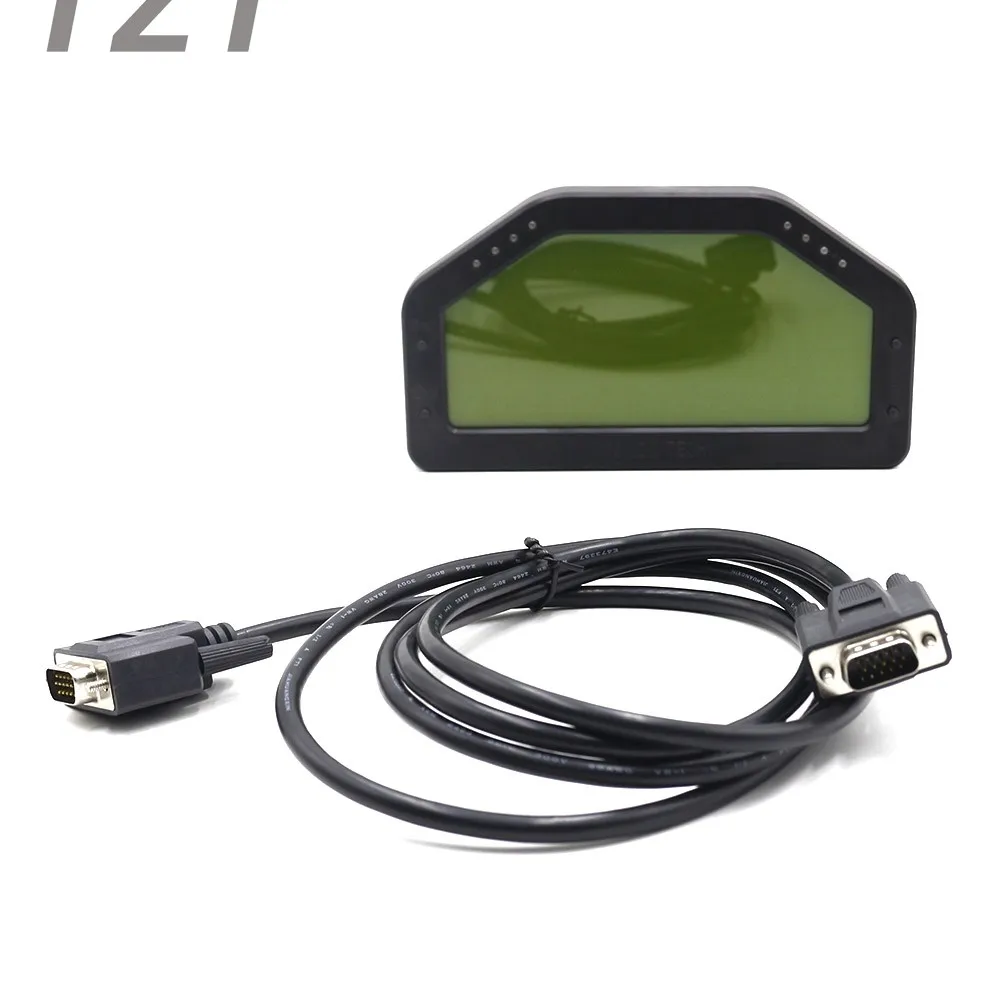

- 1 x Dash display
- 1 x Power leads
- 1 x Installation Stand
- 1 x OBD / Bluetooth Unit
- 1 x Manual
